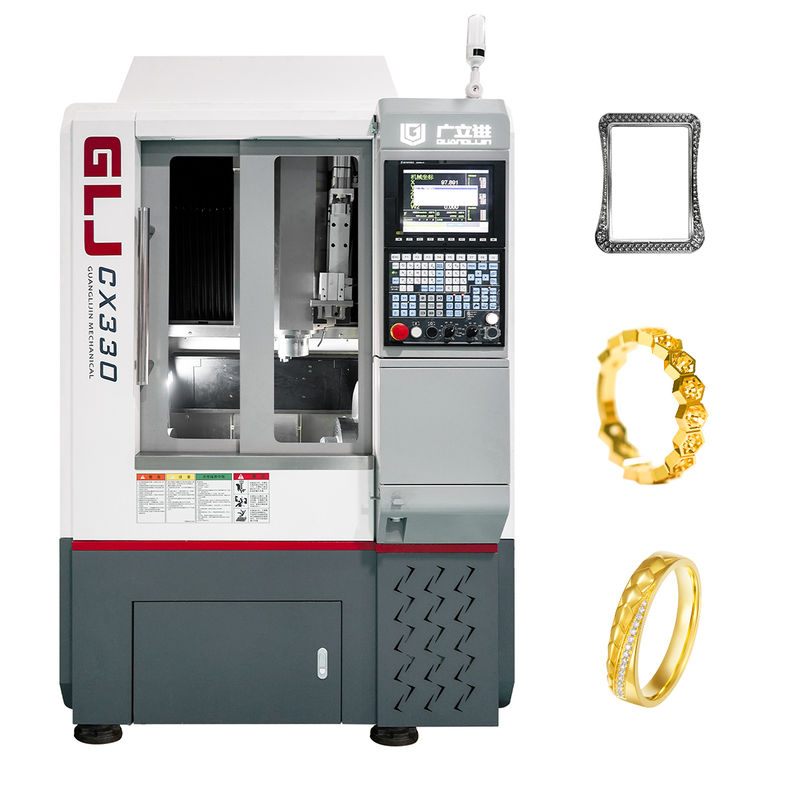

G5-330 Ring Cnc Machine Turning And Milling Machining Center

起源の場所	中国
ブランド名	GUANGLIJIN
証明	CE Certificate
モデル番号	G5-330 ターニング・アンド・フレーシング・機械センター

製品の詳細

ハイライト:

G5-330 CNC ring machine

five axis CNC machining center

industrial CNC turning milling machine

支払いと配送条件

最小注文数量

パッケージの詳細

国際基準に準拠する木製のフレーム

受渡し時間

30日

支払条件

T/T

供給の能力

100 単位/月

製品説明

Technical Parameters:

G5-330 Machine Center
No.	Item	Details
1	B axis reducer	DD motor	Rated torque 20n.m, Max. torque 60n.m,
2	C axis reducer	DD motor	Rated torque 436n.m, Max. torque 1200n.m,
3	Transmission components	Rexroth, Germany	Repeatability: +/-0.002m
4	Operation	SYNTEC system	220MA-10.4 inch screen operation box
5	Servo motor		750w
6	Spindle	electric	8kw, max. speed 36000 rpm water cooling with flow-alarm
7	Tool magazine	servo-drive	Up to 21 tools
8	Tool calibration	auto setting	speed 50-200mm/min, accuracy 0.002mm
9	Tool holder		HSK E32
10	Collet chuck		ER-20
11	Accuracy compensation	Linear encoder from Heidenhain, Germany	accruacy: +/-2um, max. interpolation errors +/-0.1um, with atmoseal protection
12	Lubrication		Timing automatic oiling
13	Working flatness		+/-0.002mm
14	X axis stroke		200mm
15	Y axis stroke		380mm
16	Z axis stroke		280mm
17	Body weight		3 tons
18	Front door		sliding door
19	Layout (mm)	main body	1710 width1220 depth2100 height
20	Power requirement	three-phase	380v/50hz
21	Optional configuration	auto rod holder	max. dia. 25mm
22		manual chuck
23		auto chuck	can cooperate with robot
24		laser tool calibration	Renishaw, UK
25	Nodular cast iron, gantry type milling, regular milling diameter is 200mm, max. milling size can be 300*300mm; need constant temperature workshop to ensure linear encoder accuracy.

G5-330 Ring Cnc Machine Turning And Milling Machining Center 0

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
